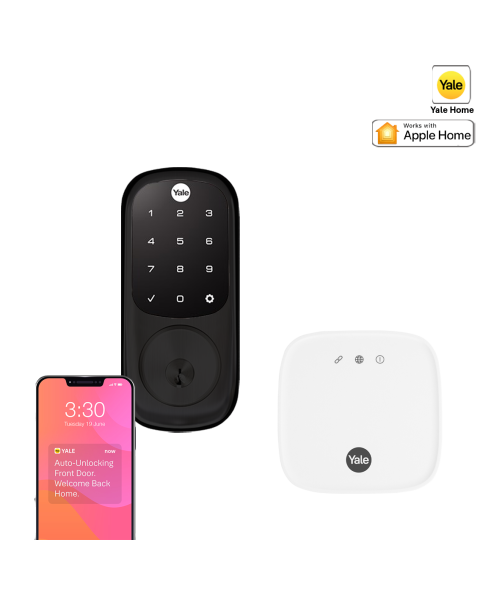

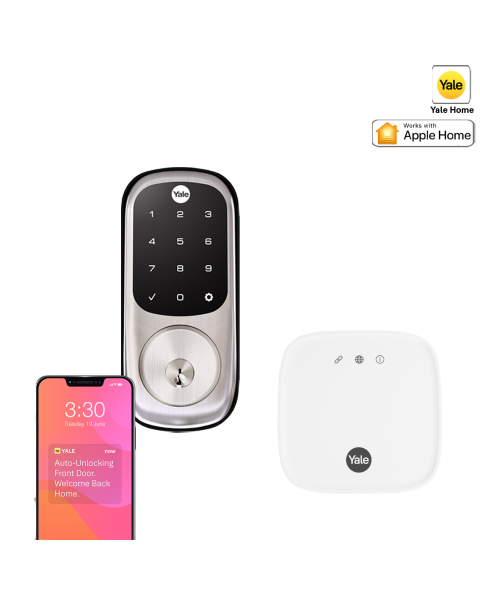

Bundle Offers
  1. Out of stock
  2. $569.98
Yale Assure Keyed Smart Lock

Secure your home with this Yale electronic lock and enjoy the convenience of unlocking and locking your door using the backlit touchscreen keypad; you'll never have to carry around your keys again.The lock is Grade 2 certified and backed Yale, one of the world's best known brands in the lock industry that has been securing homes since 1846, ensuring that your home and family is always safe.

Works With Your Smart Home
The Yale Assure Keyed Smart Lock comes with a Yale Home App module, allowing you to lock/unlock, share access, and see who comes and goes, all using your Yale Home App or smart home automation at your door! For ultimate convenience, your Yale Assure Keyed Smart Lock will unlock automatically as you approach the door and relock once the door is closed! Plus, you can upgrade with the Yale Connect Plus Wi-Fi Bridge (sold separately) to access your lock remotely and enjoy voice assistant capability. Easily integrate it into your Google, Siri, Samsung, or Alexa-enabled smart home devices. The Yale Assure Keyed Smart Lock is also compatible with other Yale Modules (Z-Wave Plus and ZigBee* - not included) to integrate into most home automation systems, allowing you to control and monitor the lock from anywhere in the world.
Create Unique Pin Codes
Unlock the door by entering your 4-8 digit pin code. The lock stores up to 25 unique pin codes, that can all be created or removed using the menu from your keypad.

Install Within Minutes
The Assure Lock is simple to install on standard doors and replaces your existing deadbolt in minutes with just a screwdriver. The lock even has voice guidance in three languages to walk you through set up and customizing settings.

  • Create up to 25 entry codes for access by keypad
  • Certified ANSI/BHMA A156.36, Grade 2
  • One touch locking
  • Capacitive touchscreen keypad
  • Backlit numbers that will not wear off
  • Privacy button
  • Tamper resistant battery cover
  • Replaces existing deadbolt with just a screwdriver
  • Fits on doors 35mm to 57mm thick (35mm requires thin door gasket included in the box)
  • Backset adjustable to 60mm or 70mm
  • Face bore hole 54mm
  • Edge bore hole 25mm
  • Adjustable latch

Download the Yale Home App for
  • App control
  • Guest access
  • 24/7 activity monitoring and notifications
  • Auto lock/unlock when you are nearby
  • DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
  • Integrate with Apple HomeKit smart home ecosystem

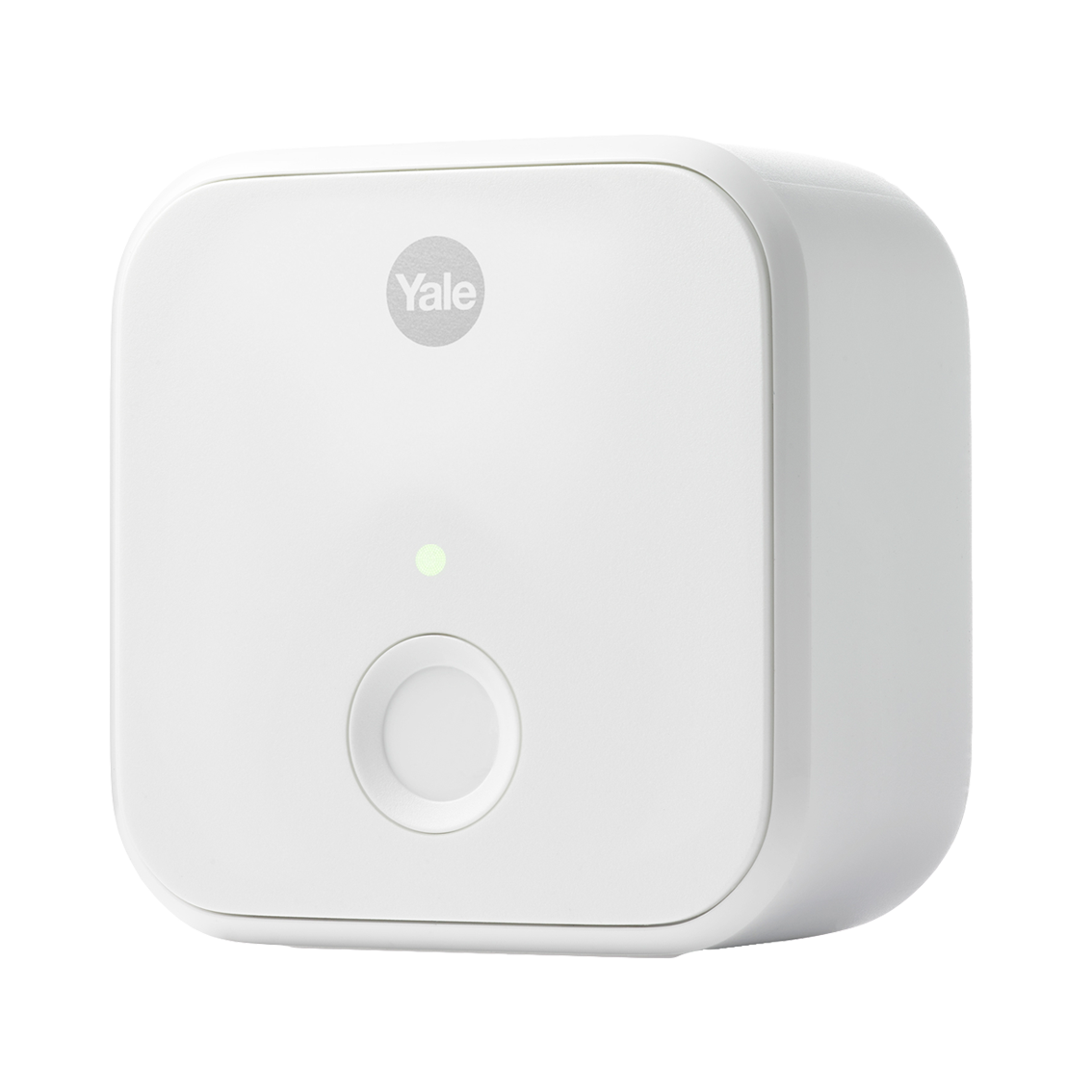

Upgrade with the Yale Connect Plus Hub for
  • Manage access to your home from anywhere
  • Remote locking/unlocking
  • Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

Home Automation Compatible with Module**
Monitor access, lock and unlock your door from anywhere when you upgrade with the Yale Connect Plus Hub*, Zigbee or Z-Wave module** and integrate into a compatible home automation or security system.
* The Yale Connect Plus Hub enables remote access to the Yale Home App (sold separately).
** Network modules sold separately.

This product is suitable for residential applications on entry doors.
It is not suitable for entry points where the escutcheon is exposed to outdoor elements.
More Information
Product Code YRD226NR
Key Over-ride With
Tested to Standards Tested to NZ Standard, Tested to Australian Standard
DDL Access Type PIN
Door Thickness Range 35mm-57mm
Programmable access rights Yes
Electro-mechanical Yes
Battery type AA
Key Profile C4
Packing Type Box
Bolt Type / Function Deadbolt
Residential Yes
Handing Reversible
Power Option Battery
Electronic Yes
Battery life more or less 12 months
Audible Indicator Yes
Compatible with Restricted Keying No
Backset 60-70mm
No. of Keys 2
Construction Key Capable No
Audit trails No
Number of Cylinders 1
Backup Power No
Break in/ tamper alarm Yes
Fake PIN No
Lock Type Deadbolt
Low Battery Indicator Yes
Mobile App Yale Link
Yale Home App Compatible Yes
