Yale Connect Plus Hub 2

The Yale Connect Plus Hub 2 allows you to access multiple Yale smart home locks and window actuators from wherever you are. Monitor the status of your home, lock or unlock and more using your Yale Home App from anywhere. The Yale Connect Plus Hub 2 allows your Yale smart home devices to work with Amazon Alexa, Google Home and more.*
*Please check if your specific Yale smart home device works with Alexa or Google Home on the Yale website before purchase.

Features

• One App, From Anywhere: Monitor the status of your home, lock or unlock and more using the Yale Home App
• Grow your Yale Home Automation: Supports up to 16 Bluetooth and 30 Zigbee Yale smart home devices
• Coverage for the Entire home*: Designed to support Yale smart home devices throughout your home, freeing up power points by having multiple devices connected to the one Hub
• Integrate with voice assistants and smart home ecosystems including Amazon Alexa and Google Assistant for hands-free control
• Compatible with Yale Assure locks, Yale YDM mortice locks, Yale Unity locks, Yale Smartlatch2, Yale Smart safes and Yale Aeron window controllers
• QR code for quick access to Yale Home App
• Can be wall mounted
• Supplied in retail box

*Home size, layout and building materials can impact performance. Larger sized homes may require additional Yale Connect Plus Hub 2 devices for full coverage.

Specifications
Material: Plastic
Body size: 80mm x 80mm x 30mm
Net weight: 65g (Hub alone)
WiFi: WiFi 802.11b/g/n 2.4GHz networks; please make sure your Wi-Fi router broadcasts a 2.4 GHz network
Bluetooth: BLE 5.0 2.4GHz
Zigbee: Zigbee 3.0 2.4GHz
Power adapter included: USB-C / 5VDC, 1A
Basic function Hub/Bridge for BLE and Zigbee multi-devices
Certification : FCC/IC/BTSig/CE/RCM/RoHS

LED Indicator Functions
1. Power LED
• Solid LED = Hub is powered on
• Slow flash LED = Hub is searching sub-devices
• No LED = Hub is powered off

2. Wi-Fi Connection
• Solid LED = Hub is connected to Wi-Fi router
• Slow flash LED = Hub is in Wi-Fi connect mode
• Fast flash LED = Firmware is being updated
• No LED = Hub can’t connect to Wi-Fi router

3. Server Connection
• Solid LED = Hub is connected to Yale Home Server but there is no data being communicated at the time
• Slow flash LED = Hub is communicating with Yale Home Server
• No LED = Hub can’t connect to Yale Home Server

Note: if all 3 LEDs blink consecutively then the Hub is currently undergoing a factory reset

Finish
Snow white

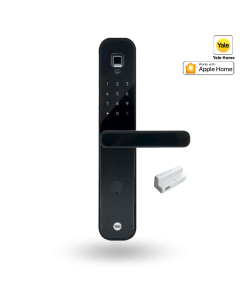

Yale Digital Mortise Lock

The Yale YDM7220 is Mortise Smart Lock, a smart and extremely convenient solutions for your home.

Yale takes the next step in providing you peace of mind when securing your belongings with the YDM7220 Smart Mortice Lock. Offering you various door access methods including fingerprint scan,personalised PIN code, RFID key tag or a physical key, there is now even more smart lock options to suit your home needs.

The Yale YDM7220 smart lock is a smart and extremely convenient solutions for your home. You can have all the various access option to enter your home either via fingerprint scan, personalized PIN code, RFID key tag or simply via your phone.

Works With Your Smart Home
The Yale Mortise Digital Lock comes with a Yale Home App module, allowing you to lock/unlock, share access, and see who comes and goes, all using your Yale Home App or smart home automation at your door! For ultimate convenience, your Yale Mortise Digital Lock will unlock automatically as you approach the door and relock once the door is closed! Plus, you can upgrade with the Yale Connect Plus Wi-Fi Bridge (sold separately) to access your lock remotely and enjoy voice assistant capability. Easily integrate it into your Google, Siri, Samsung, or Alexa-enabled smart home devices. The Yale Mortise Digital Lock is also compatible with other Yale Modules (Z-Wave Plus and ZigBee* - not included) to integrate into most home automation systems, allowing you to control and monitor the lock from anywhere in the world.

Features

• Finger Print / PIN / Card access
• 4-10 Digit pin codes
• Voice guide feature
• Audible indicator
• Automatic locking
• Fake pin code
• Intrusion/damage alarm
• Low battery alarm
• Emergency mechanical key
• Yale Home module provides Bluetooth connectivity and the ability to connect to the Yale Home App (included)
• Optional remote control (not included)
• Accepts quality alkaline AA battery
• Battery life approximately 1 year
• Suitable for residential applications
• Stainless steel bolt
• Deadbolt and deadlatch function
• Die cast body / case
• Supplied in display box

The Yale YDM7220 Smart Mortice Lock has an inbuilt door position sensor that checks the status of whether the door is open or closed. This avoids inadvertently locking your door while the door is open. With the scramble code feature, you can either enter a series of numbers at the beginning or after the pin code to ensure the real pin is not exposed. To ensuring further safety, there is a child safe button on the inside handle which can be enabled, so the button on the inside handle must be depressed for the lever to engage the lock.
The privacy button brings enhanced security to you by disabling authentication methods (pincode, RFID tag, and fingerprints) from outside when you switch ON from inside. You will only be able to use the mechanical key (2 provided) to unlock when the Privacy mode is ON. 9V battery backup terminal is located at the bottom of the lock in case the battery runs flat, though with an audible low battery warning, this will be averted.

You can have all multiple access options to your home, by fingerprint scan, personalized PIN code, RFID key tag, mobile access via the Yale Home app (not included)* and remote access via Yale Home app (not included)*. The 5-in-one lock access (RFID Card, PIN Code, Fingerprint, Mechanical Key Override, with Yale Home Module Inside (provides Bluetooth Capability and ability to connect to Yale Home app) and Remote Access Through the optional Yale Home Bridge (not included).

Specifications

• Mortise lock
• Can Register Up to 100 Different Fingerprint
• Can Register Up to 100 Different User Codes
• Can Register Up to 100 RFID Cards
• 2 Mechanical Keys
• 60mm Backset
• 40mm - 90mm door thickness
• Timber door application

Download the Yale Home App for

• App control
• Guest access
• 24/7 activity monitoring and notifications
• Auto lock/unlock when you are nearby
• DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
• Integrate with Apple HomeKit smart home ecosystem

Upgrade with the Yale Connect Plus Hub for

• Manage access to your home from anywhere
• Remote locking/unlocking
• Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

Home Automation Compatible with Module**
Monitor access, lock and unlock your door from anywhere when you upgrade with the Yale Connect Plus Hub*, Zigbee or Z-Wave module** and integrate into a compatible home automation or security system.
* The Yale Connect Plus Hub enables remote access to the Yale Home App (sold separately).
** Network modules sold separately.

Dimensions
Front Body:
Depth 26.5mm
Width 68mm
Height 335mm

Back Body:
Depth 36mm
Width 72mm
Height 344mm

Note:
This product is suitable for residential applications on entry doors.
It is not suitable for entry points where the escutcheon is exposed to outdoor elements.

Finish
Matt Black MBK
