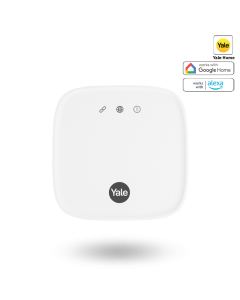

Yale Connect Plus Hub 2

The Yale Connect Plus Hub 2 allows you to access multiple Yale smart home locks and window actuators from wherever you are. Monitor the status of your home, lock or unlock and more using your Yale Home App from anywhere. The Yale Connect Plus Hub 2 allows your Yale smart home devices to work with Amazon Alexa, Google Home and more.*
*Please check if your specific Yale smart home device works with Alexa or Google Home on the Yale website before purchase.

Features

• One App, From Anywhere: Monitor the status of your home, lock or unlock and more using the Yale Home App
• Grow your Yale Home Automation: Supports up to 16 Bluetooth and 30 Zigbee Yale smart home devices
• Coverage for the Entire home*: Designed to support Yale smart home devices throughout your home, freeing up power points by having multiple devices connected to the one Hub
• Integrate with voice assistants and smart home ecosystems including Amazon Alexa and Google Assistant for hands-free control
• Compatible with Yale Assure locks, Yale YDM mortice locks, Yale Unity locks, Yale Smartlatch2, Yale Smart safes and Yale Aeron window controllers
• QR code for quick access to Yale Home App
• Can be wall mounted
• Supplied in retail box

*Home size, layout and building materials can impact performance. Larger sized homes may require additional Yale Connect Plus Hub 2 devices for full coverage.

Specifications
Material: Plastic
Body size: 80mm x 80mm x 30mm
Net weight: 65g (Hub alone)
WiFi: WiFi 802.11b/g/n 2.4GHz networks; please make sure your Wi-Fi router broadcasts a 2.4 GHz network
Bluetooth: BLE 5.0 2.4GHz
Zigbee: Zigbee 3.0 2.4GHz
Power adapter included: USB-C / 5VDC, 1A
Basic function Hub/Bridge for BLE and Zigbee multi-devices
Certification : FCC/IC/BTSig/CE/RCM/RoHS

LED Indicator Functions
1. Power LED
• Solid LED = Hub is powered on
• Slow flash LED = Hub is searching sub-devices
• No LED = Hub is powered off

2. Wi-Fi Connection
• Solid LED = Hub is connected to Wi-Fi router
• Slow flash LED = Hub is in Wi-Fi connect mode
• Fast flash LED = Firmware is being updated
• No LED = Hub can’t connect to Wi-Fi router

3. Server Connection
• Solid LED = Hub is connected to Yale Home Server but there is no data being communicated at the time
• Slow flash LED = Hub is communicating with Yale Home Server
• No LED = Hub can’t connect to Yale Home Server

Note: if all 3 LEDs blink consecutively then the Hub is currently undergoing a factory reset

Finish
Snow white

Yale Assure Keyed Smart Lock

Secure your home with this Yale electronic lock and enjoy the convenience of unlocking and locking your door using the backlit touchscreen keypad; you'll never have to carry around your keys again.The lock is Grade 2 certified and backed Yale, one of the world's best known brands in the lock industry that has been securing homes since 1846, ensuring that your home and family is always safe.

Works With Your Smart Home
The Yale Assure Keyed Smart Lock comes with a Yale Home App module, allowing you to lock/unlock, share access, and see who comes and goes, all using your Yale Home App or smart home automation at your door! For ultimate convenience, your Yale Assure Keyed Smart Lock will unlock automatically as you approach the door and relock once the door is closed! Plus, you can upgrade with the Yale Connect Plus Wi-Fi Bridge (sold separately) to access your lock remotely and enjoy voice assistant capability. Easily integrate it into your Google, Siri, Samsung, or Alexa-enabled smart home devices. The Yale Assure Keyed Smart Lock is also compatible with other Yale Modules (Z-Wave Plus and ZigBee* - not included) to integrate into most home automation systems, allowing you to control and monitor the lock from anywhere in the world.
.
Create Unique Pin Codes
Unlock the door by entering your 4-8 digit pin code. The lock stores up to 25 unique pin codes, that can all be created or removed using the menu from your keypad.

Install Within Minutes
The Assure Lock is simple to install on standard doors and replaces your existing deadbolt in minutes with just a screwdriver. The lock even has voice guidance in three languages to walk you through set up and customizing settings.

Features

• Create up to 25 entry codes for access by keypad
• Certified ANSI/BHMA A156.36, Grade 2
• One touch locking
• Capacitive touchscreen keypad
• Backlit numbers that will not wear off
• Privacy button
• Tamper resistant battery cover
• Replaces existing deadbolt with just a screwdriver
• Fits on doors 35mm to 57mm thick (35mm requires thin door gasket included in the box)
• Backset adjustable to 60mm or 70mm
• Face bore hole 54mm
• Edge bore hole 25mm
• Adjustable latch

Download the Yale Home App for

• App control
• Guest access
• 24/7 activity monitoring and notifications
• Auto lock/unlock when you are nearby
• DoorSense™ technology: know when your door is open, closed or left ajar from anywhere
• Integrate with Apple HomeKit smart home ecosystem

Upgrade with the Yale Connect Plus Hub for

• Manage access to your home from anywhere
• Remote locking/unlocking
• Integrate with voice assistants and smart home ecosystems, Amazon Alexa and Google Home, for hands-free control

Home Automation Compatible with Module**
Monitor access, lock and unlock your door from anywhere when you upgrade with the Yale Connect Plus Hub*, Zigbee or Z-Wave module** and integrate into a compatible home automation or security system.
* The Yale Connect Plus Hub enables remote access to the Yale Home App (sold separately).
** Network modules sold separately.

Note:
This product is suitable for residential applications on entry doors.
It is not suitable for entry points where the escutcheon is exposed to outdoor elements.

Finish
Satin Nickel SN
